D-Rings and Lash Points on Dry Bags

Why lash points fail before the fabric does

The shell of a roll-top bag is a continuous membrane loaded in tension, which distributes force extremely well. A lash point is the opposite: it concentrates the entire load into a few square centimetres and then hands it to an interface, either a weld or a stitch line, that is far weaker than either material it joins. Almost every bag that has ever gone overboard was lost at that interface rather than through a tear in the panel.

The second reason is that attachments see a different kind of load. Panels are loaded slowly and evenly; lash points get yanked, twisted and shock-loaded. A strap that is slack for an hour and then snaps tight when a boat drops into a trough applies its load in perhaps 40 milliseconds. Polyester webbing and TPU film both behave differently at that rate than in a slow pull, which is why the safe working number is a third of the static rating, not a half.

There is also fatigue. A tab loaded to a quarter of its rating every day for a season accumulates damage at the weld edge, and the eventual failure looks sudden but is not. On fleet bags that is why weekly inspection at the same eight points matters more than the printed figure.

D-ring formats: welded tab, sewn loop and bar tack

Four formats cover nearly everything on the market. A welded TPU tab is a strip of the same film as the bag, radio-frequency welded directly onto the shell with no thread and no holes. A sewn webbing loop is polyester webbing stitched to the face fabric, usually with a bar tack. A bar-tacked loop onto a reinforced patch adds a second layer of fabric under the stitch. A metal D-ring sits on one of those bases and adds a rigid clipping point.

The welded tab wins on waterproofing because it introduces no needle holes at all, and it wins on strength because a continuous RF bond has no perforation line to start a tear. It loses on repairability: if it tears, the repair is a patch over a large area rather than a restitch. The sewn loop is easy to replace by any bag repair shop and is perfectly adequate for light tie-down, but every needle hole is a potential water path and a stress riser.

Metal D-rings deserve a specific warning. The ring itself is rarely the weak point; the base it is mounted on is. A stainless ring rated at 2,000 newtons mounted on a 15 mm sewn loop will still fail at 260 newtons because the loop goes first. Match the whole assembly, not the shiny part, and if you see a metal ring on a narrow sewn tab, assume the tab is the specification.

What a welded tab actually carries

Bond area is the first variable. A 25 mm tab welded over 60 mm of length gives 15 square centimetres of interface, and a well-tuned radio-frequency weld on TPU will hold more than the film itself in pure shear. The problem is that a tab is loaded in peel, not shear: the strap pulls up and away, and the failure starts at the very edge of the bond where stress concentration is highest. Peel strength is typically 5 to 10% of shear strength, which is the whole story of why wider is better.

Weld width behaves the same way. A 15 mm weld that is 3 mm wide at the edge fails at perhaps 200 newtons in peel; the same geometry at 8 mm reaches 400 to 450 newtons because the peel front has to travel further and the film behind it is supported. Doubling the weld width roughly doubles peel resistance, while doubling the tab width only adds about 60%, because the added width does not change the stress concentration at the edge.

Orientation is the variable most builders get wrong. A tab welded so its long axis runs across the panel grain resists peel better than one welded along it, because coated and laminated fabrics have directional tear resistance. On a 500D polyester the difference is 15 to 25%. It costs nothing to rotate the tab 90 degrees on the cutting table, and it is the cheapest strength increase available on a spec-built bag.

Load ratings: static pull versus shock load

A static rating is measured by pulling slowly until something breaks. A shock rating is what the assembly survives when the load arrives fast, and it is always lower because neither the film nor the thread has time to distribute stress. The working rule on water gear is a 3:1 safety factor against static failure, which means the 380 newton welded tab above has a working load near 120 newtons and should never be asked to hold more than a 12 kg bag in a non-critical position.

Do the arithmetic on a real event. A 12 kg bag falls 0.5 m before a strap goes taut: that is 59 joules of energy. If the strap and the tab give 50 mm of stretch while arresting it, the average arresting force is 1,180 newtons plus the 118 newtons of static weight, so roughly 1,300 newtons at the attachment. That is more than three times the static rating of a 25 mm welded tab, and it is a completely ordinary event on a raft in a rapid.

The practical response is redundancy, not over-specification. Two independent attachment points halve the load on each and mean one failure is survivable. Run a second strap around the middle of a big cylinder, tether to a fixed point as well as strapping down, and never rely on a single tab for a load you cannot afford to lose. The load maths for the straps themselves is covered in our strap load guide.

Webbing width, weave and stitch density

Webbing is almost never the failure point, which is worth knowing because it means spending money there buys little. A 25 mm polyester webbing breaks near 8,000 newtons in a straight pull, roughly ten times what the attachment can deliver. What webbing does control is how the load is presented to the attachment: narrow webbing concentrates it into a small area and encourages peel, while wider webbing spreads it and loads the bond more in shear.

Stitch density is the variable that matters on sewn loops. Six to eight stitches per centimetre with a bonded Tex 70 nylon thread gives a seam efficiency of 70 to 80% of the webbing strength. Drop to three stitches per centimetre and efficiency falls below 45%, and the seam also starts to peel open under cyclic load. A bar tack, which is a dense zig-zag block 10 to 12 mm wide, is better than a straight run because it terminates the load in many directions at once.

Thread material matters in salt water more than most people expect. Bonded nylon loses 10 to 15% of its tensile strength after prolonged wetting and is attacked slowly by mildew; bonded polyester loses under 5% and resists mildew. If a bag spends its life on the coast, specify polyester thread even on a nylon webbing loop. The extra cost per bag is a few cents, and the difference shows up in year three rather than year one.

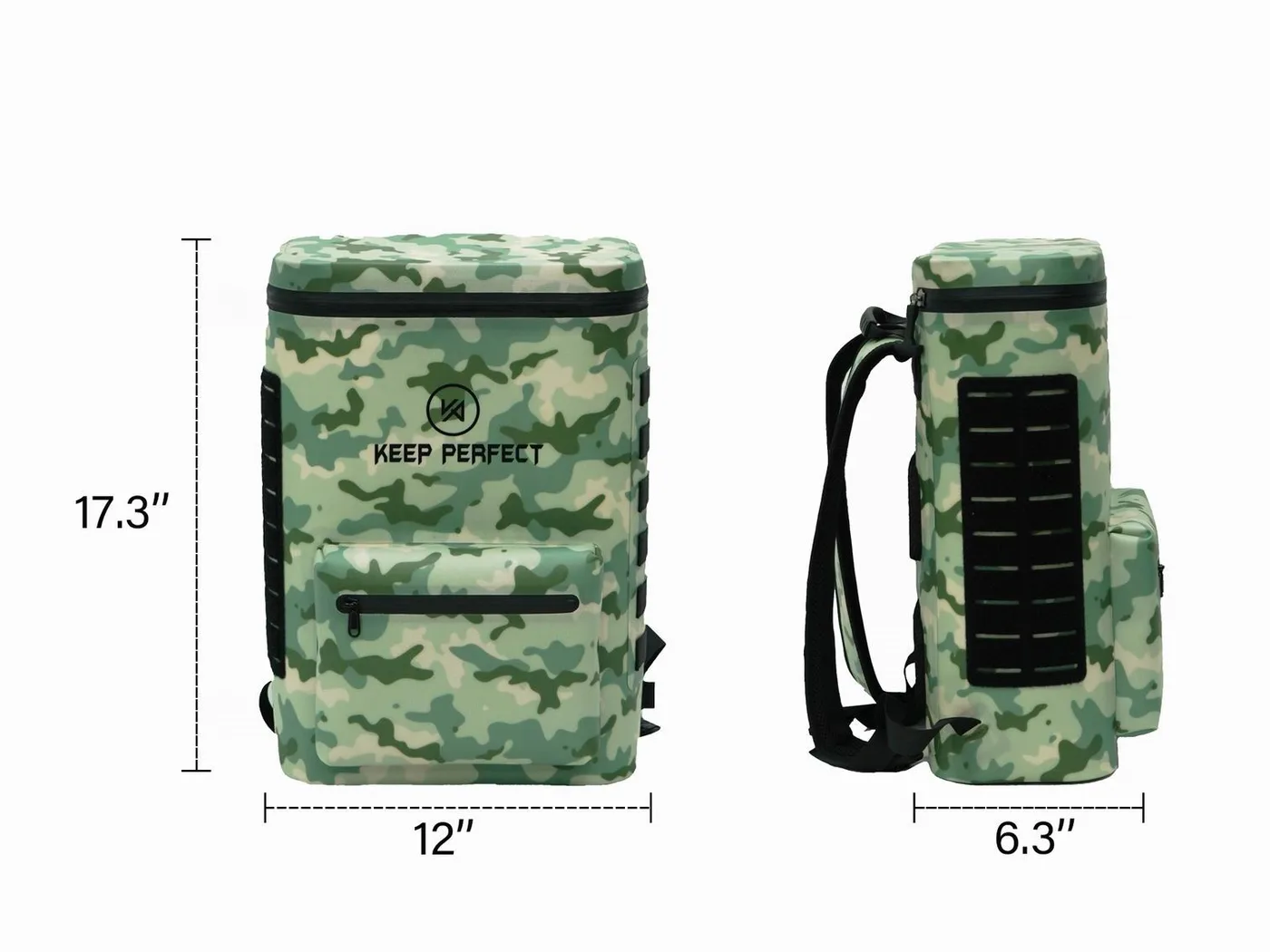

Position: corners, sides and daisy chains

Where a lash point sits changes how it is loaded. A tab on the upper third of a bag side is loaded mostly in shear when the bag is strapped down, which is the favourable direction. A tab at the base corner is loaded in a combination of shear and peel as the bag rocks, and it also takes abrasion from whatever the bag rests on. Corner tabs therefore need the widest weld on the bag, and they are the ones that should be inspected first.

Daisy chains look like a good idea and are usually a compromise. A continuous webbing chain gives you ten attachment choices, but each link is sewn with two small tacks rated at perhaps 80 to 120 newtons, and the chain itself distributes load along its length in ways that are hard to predict. On a dry bag, a daisy chain is fine for clipping a water bottle and wrong for strapping the bag to a frame. Keep structural attachment to discrete, reinforced tabs.

A detail that pays off on bigger bags: put a pair of tabs on opposite sides at the same height so a strap can pass under the bag rather than over it. Passing under converts the load into compression against the frame and removes almost all the peel component at the tab. On a 60L bag strapped to a raft crossbar this single change roughly doubles the effective life of the attachment points.

Hardware materials: POM, stainless, aluminium, TPU

Four materials cover the hardware you will meet. POM, also called acetal, is the standard for buckles and ladderlocks: dense at 1.41 grams per cubic centimetre, dimensionally stable to minus 40 °C, and completely immune to salt. Stainless 304 is the default for D-rings and split rings. Stainless 316 adds 2 to 3% molybdenum and is the right choice for anything permanently on the coast. Anodised aluminium is light but pits once the anodising is scratched.

The counter-intuitive result is that plastic hardware usually outlasts metal on a dry bag. A POM buckle has no galvanic couple with the frame, no sharp edge to abrade the film, and it deforms visibly before it fails. A stainless ring rubbing on an aluminium crossbar sets up a galvanic cell that corrodes the aluminium, and the corrosion products then stain and stiffen the TPU around the tab. If you must mix metals, isolate them with a plastic washer.

Over-moulded TPU pull tabs are the quiet winner for hand contact points. At 1.2 grams per cubic centimetre they are light, they stay flexible to minus 30 °C where POM hardens, and because they share a polymer family with the shell they can be welded rather than sewn. On a bag grabbed with cold wet hands, a soft tab is the difference between a comfortable lift and a painful one.

Salt, sand and galvanic corrosion

Salt attacks hardware by three routes, and only one of them is visible. The visible one is surface rust on a 304 ring after a season without rinsing. The second is crevice corrosion inside the pivot of a buckle, where chloride concentration rises as water evaporates and the attack proceeds out of sight. The third is galvanic corrosion between dissimilar metals, which consumes the less noble one and produces deposits that stiffen and stain the surrounding film.

Sand does its damage mechanically. Grit that works into the pivot of a cam buckle or the gap between a D-ring and its base acts as a lapping compound, and a few hundred cycles will remove measurable material. This is the reason rinsing is not optional: 30 seconds of fresh water at ambient temperature after every saltwater trip removes the chloride and the grit together, and it is the single highest-value maintenance action on a bag.

Rinse with fresh water, work every buckle and ring through its full travel while it is still wet, then dry in shade. Never use a pressure washer on a welded tab, because the jet gets under the bond edge and starts a peel that then propagates in service. If a ring has begun to show rust bloom, replace it rather than wire-brushing it: brushing removes the passive layer and the corrosion comes back faster. More detail on hardware finishes is in our corrosion resistance notes.

Testing a lash point before you trust it

1. Fill the bag to its normal working load and strap it in the position you actually use.
2. Clip a luggage scale to the tab and pull steadily in the direction the strap loads it.
3. Read the force at which the weld edge starts to lift or whiten; stop there.
4. Hold at half that figure for 30 seconds and confirm nothing creeps.
5. Repeat on every tab, then mark the test date on the bag with a paint pen.
6. Retest quarterly for bags in commercial service, annually for personal kit.

The point of the test is not to find the failure load but to find the onset of peel, which is visible as a white line appearing at the edge of the bond. Onset typically happens at 40 to 55% of the ultimate figure, so if whitening starts at 300 newtons on a tab rated 720, the tab is healthy. If it starts at 150, the weld was cold or the film was contaminated, and the tab should be rejected before the bag goes near water.

Creep is the second signal and it is the one people skip. A tab that holds 350 newtons for two seconds but slowly lifts over 30 seconds has a marginal bond, usually from a weld made 10 °C below the correct temperature. Creep failures are exactly the ones that show up later as a bag lost off a deck on a calm day, which is the most confusing kind of loss because there was no event to explain it.

Lash point layout by bag size

Small bags are over-served by their lash points and large bags are under-served, which is backwards from what the load requires. A 5L grab bag clipped to a deck line never sees more than 30 newtons, so even a modest tab is three times stronger than necessary. A 90L expedition bag can be lifted by two people, dragged across rock and strapped to a frame, and its attachment points work harder than any other part of the bag.

Perimeter webbing on the largest sizes is not decoration: it carries strap load around the bag instead of through it, so the welds see compression rather than peel. Adding a continuous 25 mm webbing band around a 90L bag costs about 90 grams and roughly doubles the real-world life of the corner tabs. On bags intended for commercial rafting or rescue work, treat the perimeter band as a requirement rather than an option.

Repairing or reinforcing a torn tab

A torn welded tab can be repaired, but the repair has to be bigger than the original. Cut a patch of the same film or a compatible TPU patch at least 50 mm larger than the damaged area in every direction, round the corners so there is no point for peel to start from, and weld or adhere it over the whole tab footprint. A patch that only covers the torn part will lift within weeks, because the peel front simply restarts at the new edge.

Sewn loops are easier. A bag repair shop can remove the old loop, add a reinforcing patch under the face fabric, and restitch with a box pattern in well under an hour. Use polyester thread, ask for seven stitches per centimetre, and insist the new loop overlaps the old stitch holes rather than reusing them, because the old holes are already a perforation line. Expect the repaired loop to reach 70 to 80% of the original rating.

The decision to repair rather than retire is an economic one. If a bag has one torn tab, repair it. If it has three torn tabs and visible whitening at the fourth, the weld parameters were wrong across the whole batch and the rest will follow. Retire the bag, and if it is part of a fleet, quarantine the batch. Guidance on the wider question of repair versus replacement is in our repair-or-replace guide.

Reading the numbers on a spec sheet

Three lines tell you almost everything: bond area in square centimetres, static pull-to-fail in newtons, and the test method used. A sheet that quotes only the webbing tensile strength is hiding the number that matters, because the webbing is never the failure point. A sheet that quotes a pull figure without naming a grip width and a pull rate is not comparable with anything, since peel results move 30% with grip geometry alone.

Standard textile and hardware test methods are published by ASTM International, and referencing a specific method costs nothing on a drawing. Ask for the peel or seam strength method rather than the tensile method, insist on a stated safety factor, and require the test to be run on welded tabs cut from production rather than from a laboratory sample. Production parts see real variation in film temperature and dwell time.

Checklist for a lash point spec

• Bond area stated in square centimetres, with tab width and weld length both given.
• Static pull-to-fail quoted with grip width, pull rate and method name.
• Working load set at one third of the static figure, not one half.
• Weld width 8 mm or more on any tab that sees peel loading.
• Tabs oriented across the panel grain for a 15-25% gain.
• 316 stainless or POM hardware on coastal kit; never bare aluminium against steel.
• Two independent attachment points for any load above 10 kg.

If you are writing a lash point specification for a fleet, a club or a retail range, add a production control to that list: require a pull test on one tab per 200 bags, with the result recorded against the batch. It takes four minutes per batch and it is the only way to catch a weld temperature drift before the bags reach the water.

Two related specifications deserve attention at the same time, because they share the load path. The buckle that closes the strap is covered in our buckle types and load ratings guide, and the welded handles that take hand loads are set out in our welded handle notes. Film durability around all of these points is covered in our abrasion resistance testing notes.

One caution closes the subject: no lash point makes a bag a lifting device or a safety attachment. Ratings here are for securing gear, not for holding people or for use as a rescue point. Where a bag is used in rescue or swiftwater work, the attachment has to be specified as part of a system with its own standards and inspection regime, and the general guidance published by the ISO on textile and sling testing is a better starting point than any bag specification.
