Roll-Top Dry Bags

A roll-top dry bag seals by folding the coated top edge over itself three or more times and clipping the buckle so the folds press together. The compression created by those folds is what keeps water out — not glue, not tape. Get three clean folds and a straight clip and the closure holds against rain, spray and short immersion; this page covers how the seal works, which size matches which activity, and what the production specifications look like.

QUANZHOU JUNYUAN BAGS has produced waterproof bags since 2014 in an SGS-verified 4,950 m2 facility in Fujian, China. Roll-top models run from a 2L essentials pouch to a 90L expedition sack, all RF-welded rather than stitched through the waterproof layer. Minimum order is 500 pieces, sampling takes 6–10 working days and bulk production runs 35–50 days, FOB Xiamen.

Black roll-top dry bag size range from 5L to 90L — Roll-Top Dry Bags shown in the field

Specification

Closure: Three-fold roll-top with side-release buckle or top clip
Body: 420D or 500D polyester / nylon with TPU or PVC laminate
Seams: RF welded, 20–25 mm overlap
Rating: IPX6 spray to IPX8 immersion depending on model
Hardware: POM buckles, 316 stainless D-rings, RoHS screened
Minimum order: 500 pieces per size and colourway
Sampling: 6–10 working days
Bulk lead time: 35–50 days after sample approval

Size selector

Volume	Typical load	Typical use	Empty weight
2L	Phone, keys, wallet, snacks	Day hikes, paddle boarding	180–260 g
5L	Light layer, first aid kit, lunch	Short kayak sessions	240–320 g
10L	Shell jacket, water bottle, camera	Half-day paddling, commuting	320–420 g
20L	Sleeping bag, clothing change	Overnight canoe trips	430–560 g
30L	Two-person kit, cooking gear	Weekend rafting	560–720 g
60L	Group camping kit, ropes	Multi-day expeditions	900–1,200 g
90L	Full expedition load	Guides and outfitters	1,300–1,700 g

Choosing the right volume

Start with what must stay dry, then add 20% for the air you will not get out. A phone, keys and a shell layer fit comfortably in 10L; an overnight sleeping bag and clothing change needs 20L; two people sharing one bag on a weekend rafting trip need 30L or more. Overstuffing is the classic error: a full bag cannot be rolled three times, and two folds is the point where most leaks begin.

How the roll-top seal actually works

The closure is a compression seal, not a barrier seal. When you fold the coated top edge over itself, the two film surfaces are pressed together along the full width of the bag, and the buckle holds that pressure in place. Water trying to get in has to travel uphill against a folded channel that is closing under load. One fold gives a single narrow line of contact; three folds give three contact lines plus two trapped air pockets that act as intermediate chambers. This is why the difference between two folds and three is not marginal, it is the difference between a seal that survives a wave and one that survives light rain.

Two variables decide whether the compression is enough. The first is fold width: a fold that is too shallow leaves the contact patch narrow, and any grit or crease across it opens a path. The second is collar stiffness. A film that has gone limp from age or heat will not hold the fold shape under strap load, which is why older bags leak at the closure even when the body is intact. Specify both when you order — fold width in millimetres and collar stiffness as a film thickness figure, not as a marketing phrase.

Closure types compared

Roll-top is not the only way to close a dry bag, and it is not always the right one. The table below sets out where each closure wins. Note that the water rating column assumes correct use; a roll-top that is closed with two folds performs like a clip-closure bag, not like a rated roll-top.

Closure	Typical rating	Open/close speed	Best for	Weak point
Three-fold roll-top	IPX6 to IPX8	5–8 seconds	Kayaking, sailing, expeditions	Needs headroom and clean folds
Single-fold clip	IPX5 to IPX6	2–3 seconds	Commuting, day hikes	Narrow contact patch
Water-resistant coil zip	IPX4 to IPX5	1–2 seconds	Camera access, urban carry	Spray tracks along the coil
Slider-seal (zip-lock)	IPX6 to IPX7	3–5 seconds	Small pouches, phone cases	Slider wear over cycles
Screw-top rigid	IPX7 to IPX8	8–12 seconds	Electronics, food storage	Thread damage if cross-threaded

For any application where the bag may go overboard, the roll-top remains the safest choice because it has no mechanical part to wear out and no slider to misalign. Zips belong where access speed matters more than immersion — a camera bag that is opened forty times a day is a different product from a sack that stays closed for six hours.

Camouflage roll-top dry bag close-up — Roll-top closure folded three times, showing the compression line across the collar

Reading a hydrostatic head number

Hydrostatic head is measured by clamping a fabric sample under a column of water and recording the height at which three drops penetrate the far side. The test method matters as much as the result: the ISO 811 hydrostatic pressure method and the AATCC 127 water resistance method use different rates of pressure increase, and a fabric measured on the faster ramp will report a higher figure on the same material. When a spec sheet quotes 10,000 mm without naming the method, treat the number as indicative only. The ISO publishes the hydrostatic pressure method and the AATCC issues the alternative water resistance method, so a comparable figure always names which one was run.

There is also a ceiling beyond which the figure stops predicting field performance. Above roughly 15,000 mm the fabric is no longer the limiting element; the seam, the closure and the hardware are. Buyers who pay for a 30,000 mm film on a bag with a two-fold collar are buying a number, not a performance improvement.

Field test protocol before you sign off a sample

Run the same four checks on every pre-production sample, and record the results so a later batch can be compared against them rather than against memory.

Dry paper test. Put a folded newspaper page inside, roll three folds, clip, submerge to 1 m for 30 minutes, then open and check for moisture. This approximates the IPX7 immersion condition defined in IEC 60529, the ingress code standard maintained by the IEC, without needing a tank rig.
Spray test. With the same closure, run a hose jet from 3 m at each seam and corner for two minutes per side. Most leaks appear at the base corners, not along the straight weld.
Load test. Fill to 80% of nominal volume with a representative load, roll, clip, and hang the bag by its strap for four hours. Watch for the collar creeping open under sustained tension.
Repeat-cycle test. Open and close fifty times, then repeat the dry paper test. Closure geometry degrades with cycles and a bag that passes new may fail at cycle fifty.

Bags that pass all four will hold up in normal use. Bags that pass the immersion test but fail the cycle test are the ones that generate warranty claims in their second season.

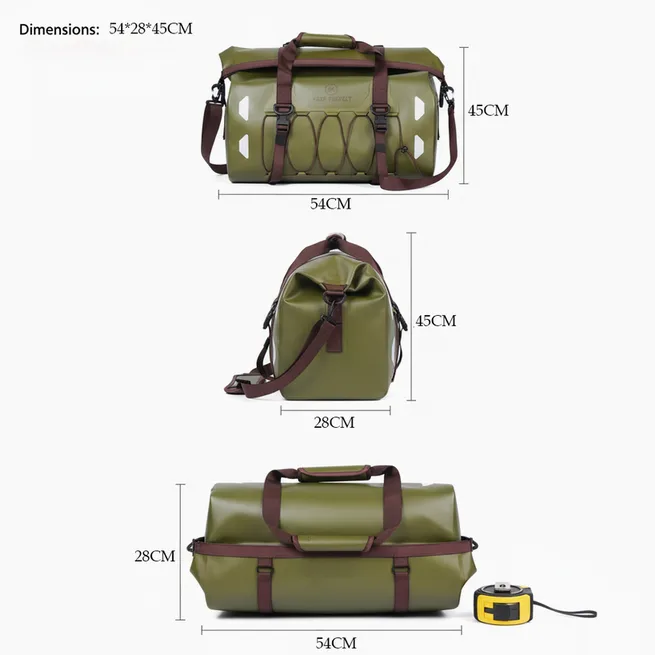

Olive roll-top dry bag size range — Roll-top dry bags shown across the 2L to 90L size range

Specification checklist for a production order

Write these nine items into the enquiry and you will get comparable quotes and fewer sample rounds: volume at three folds, film type and thickness, face fabric denier, seam construction and overlap width, target water rating with named test method, hardware specification, colour reference, print or logo method, and quantity per size and colourway. Add the inspection level — AQL 2.5 is our standard — and state whether you need hydrostatic test data with the shipment.

Minimum order is 500 pieces per size and colourway, sampling runs 6–10 working days from artwork approval, and bulk production takes 35–50 days after sample sign-off, FOB Xiamen with T/T 30/70 terms.

Man carrying a black roll-top dry bag in the city — Roll-top dry bag carried by the shoulder strap on a trail

Five mistakes that cause leaks

Rolling fewer than three folds. Two folds leave the seal too narrow to resist moving water.
Closing with grit on the fold line. Sand grains hold the surfaces apart; wipe before you roll.
Filling to the brim. Leave 20% headroom or there is nothing left to fold.
Strapping the bag down hard. Compression straps across the roll can open a channel at the corners.
Storing rolled for months. The film creases along one line and that crease becomes a leak path.

None of these require new tools to avoid; they are habit changes that cost nothing and add seasons of life to any roll-top build.

Frequently asked questions

How many folds does a roll-top dry bag need?

Three folds is the working standard for moving water, four when the bag will be strapped to a deck or carried through surf. Below three folds the contact patch is too narrow to resist a breaking wave. The figure assumes the bag is filled to about 80 percent, because a brim-full bag has nothing left to fold.

Do roll-top dry bags work upside down?

Yes, provided the folds are clean and the buckle is seated. The seal depends on compression across the fold, not on gravity, so orientation does not matter. What does matter is sustained load on the collar: hanging a heavy bag by its strap for hours can creep the folds open.

Can I put electronics in a roll-top dry bag?

Yes for rain, spray and accidental short immersion. A rated roll-top bag tested to IPX7 keeps water out for 30 minutes at one metre. For anything that will be submerged deliberately or carried underwater, use a rigid case with a screw closure rather than a soft roll-top.

Why does a dry bag leak after a season of use?

Usually crease damage rather than film failure. Rolling the bag tightly for storage puts the same fold line under stress every time, and repeated flexing whitens and eventually cracks the film along that line. Store bags open or loosely folded, in shade, away from solvents and fuel.

What is the difference between 420D and 500D dry bag fabric?

Denier is yarn thickness. 500D resists abrasion better at equal construction but is heavier and stiffer, which makes the collar harder to roll. A well-laminated 420D outlasts a poorly bonded 500D in field use. Choose by abrasion zone: 500D for the base and strap anchors, 420D for the body.

How do I specify a dry bag order?

State volume at three folds, film type and thickness, face fabric, seam construction and overlap, target rating with the test method named, hardware grade, colour reference, logo method, and quantity per size and colourway. Add the inspection level and whether hydrostatic data is required with the shipment.
